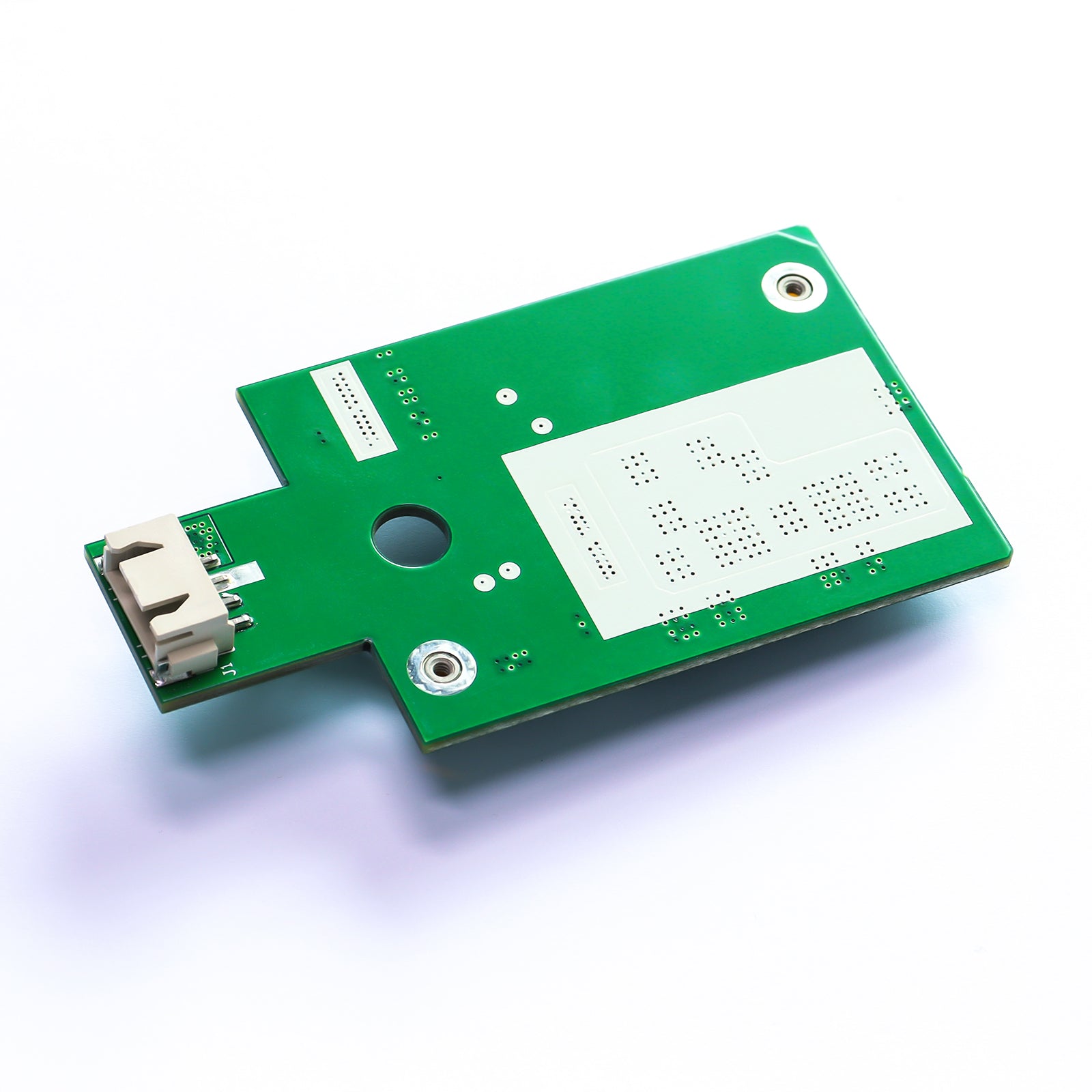

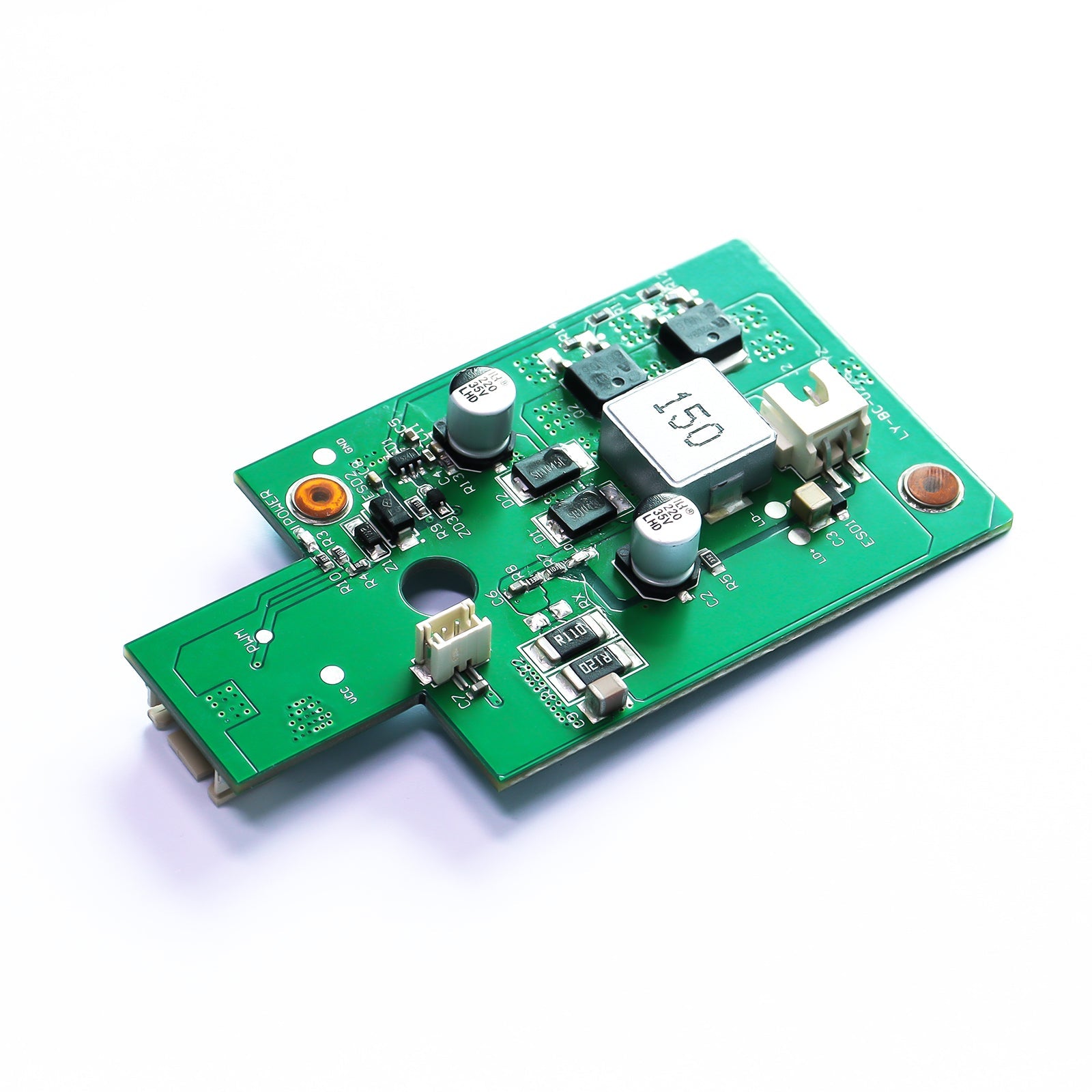

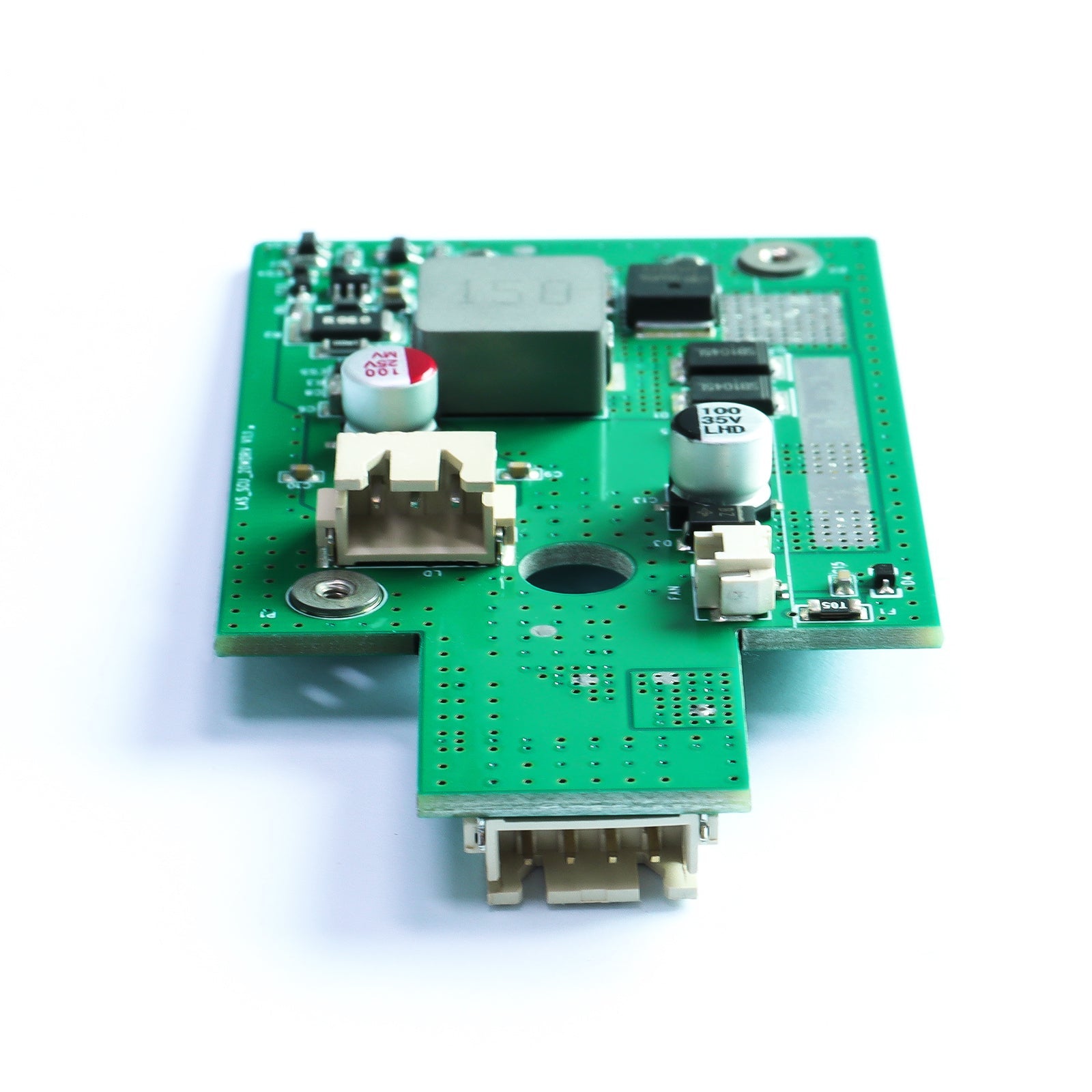

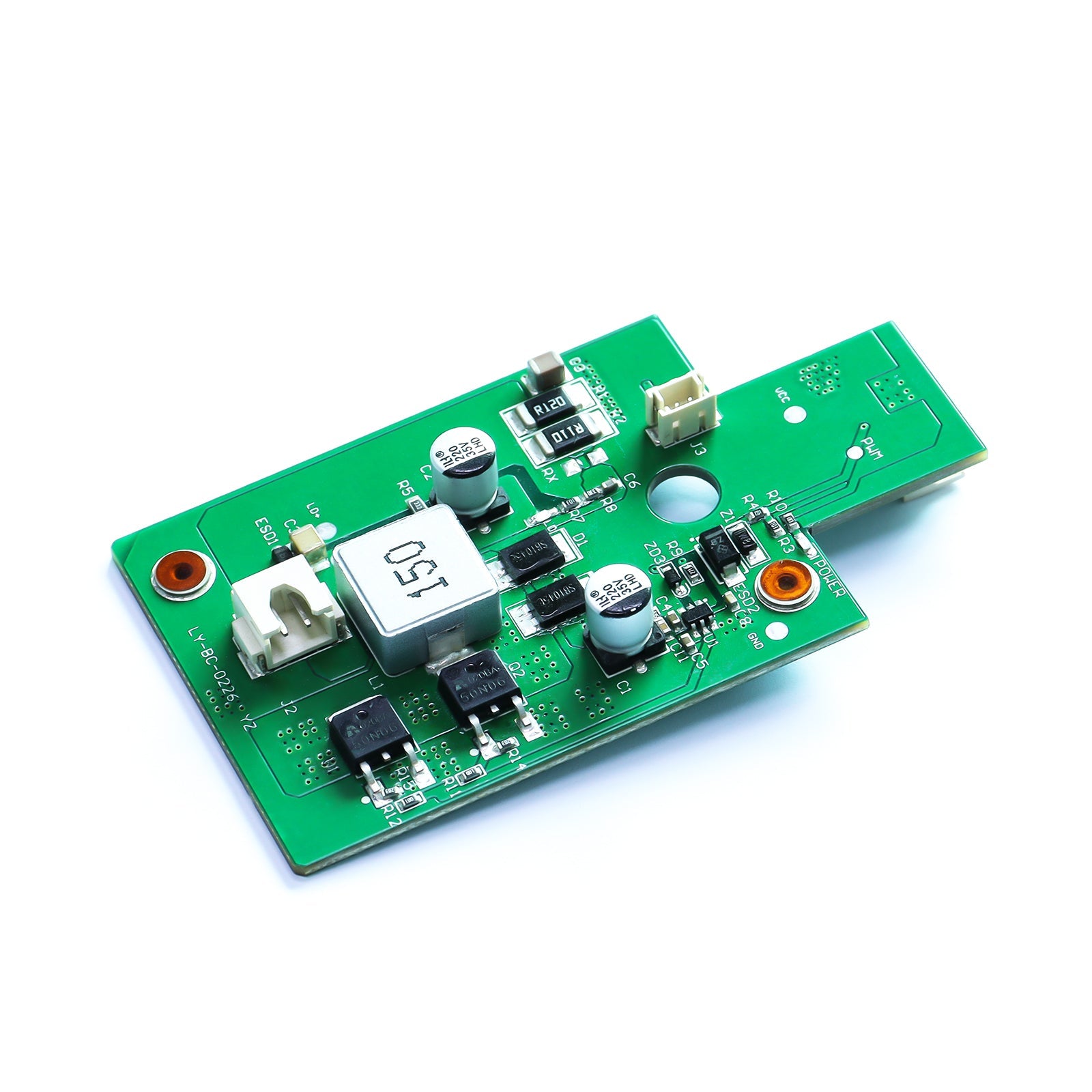

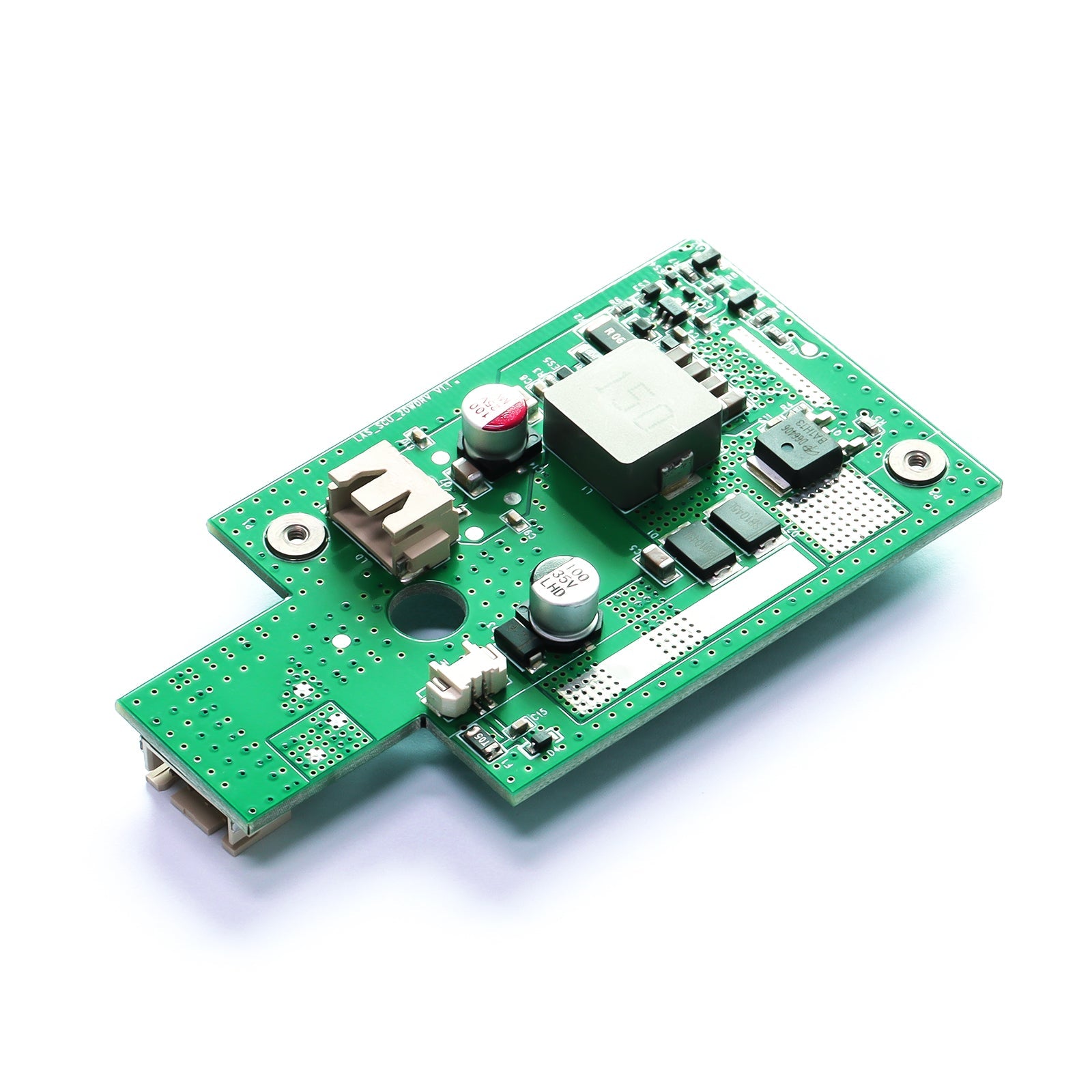

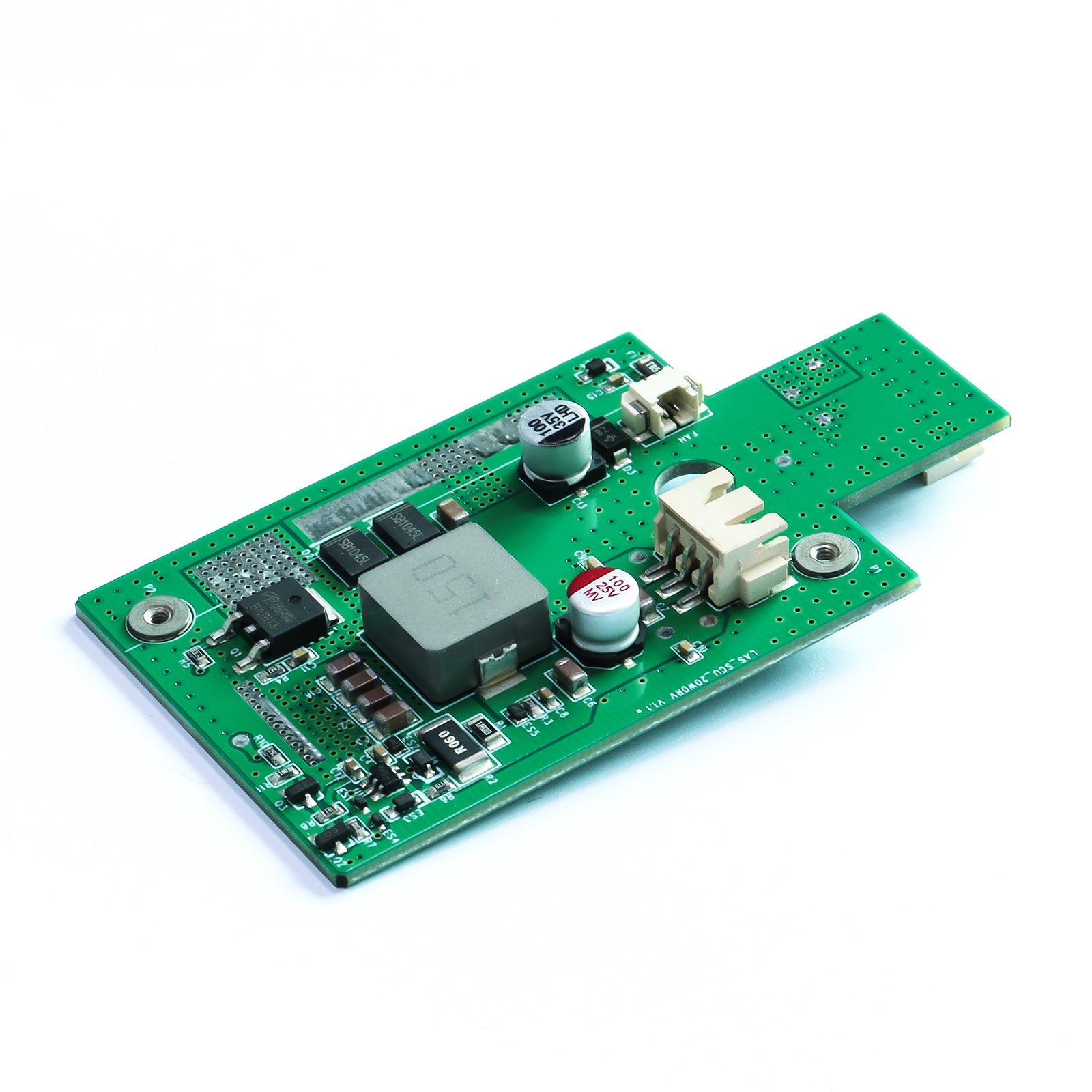

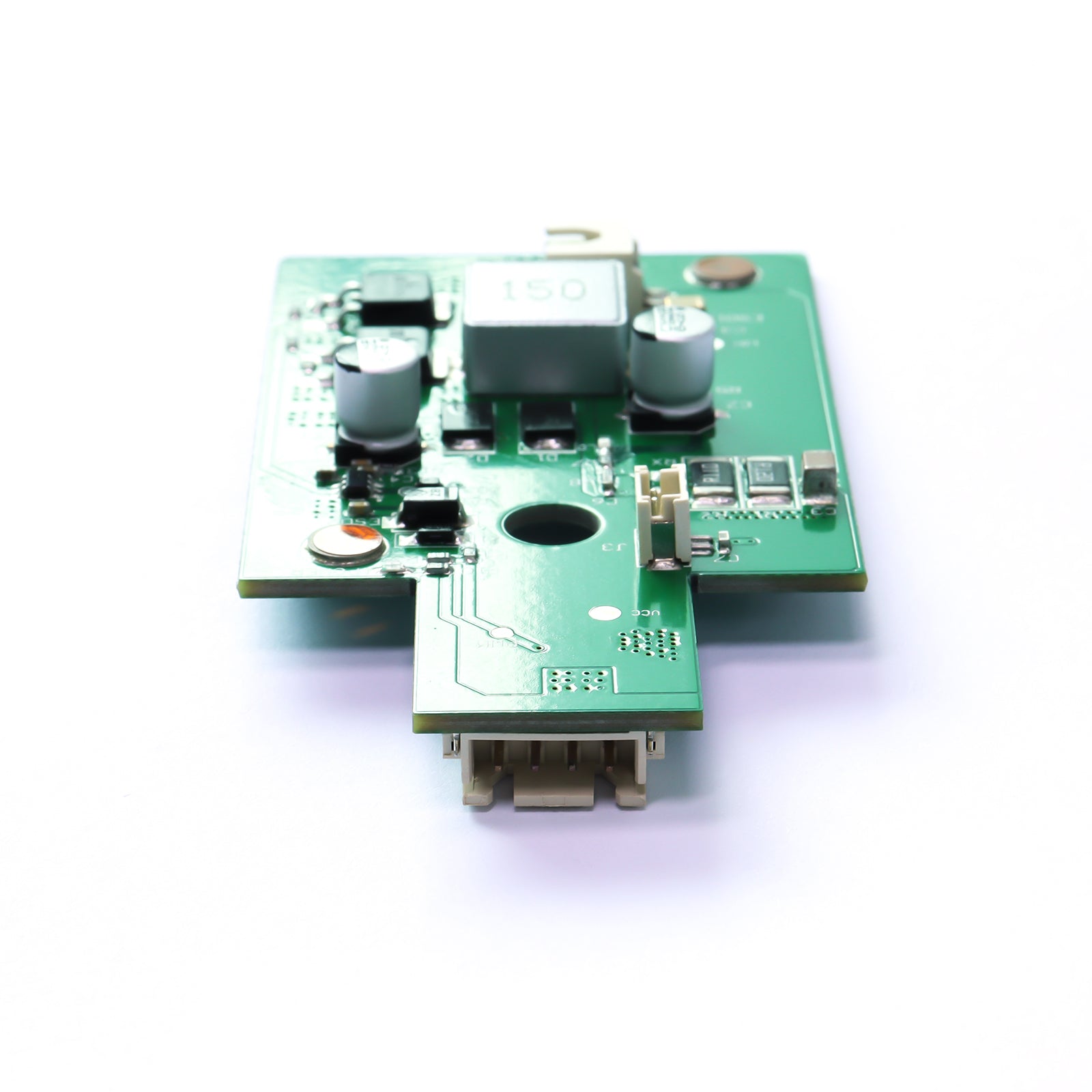

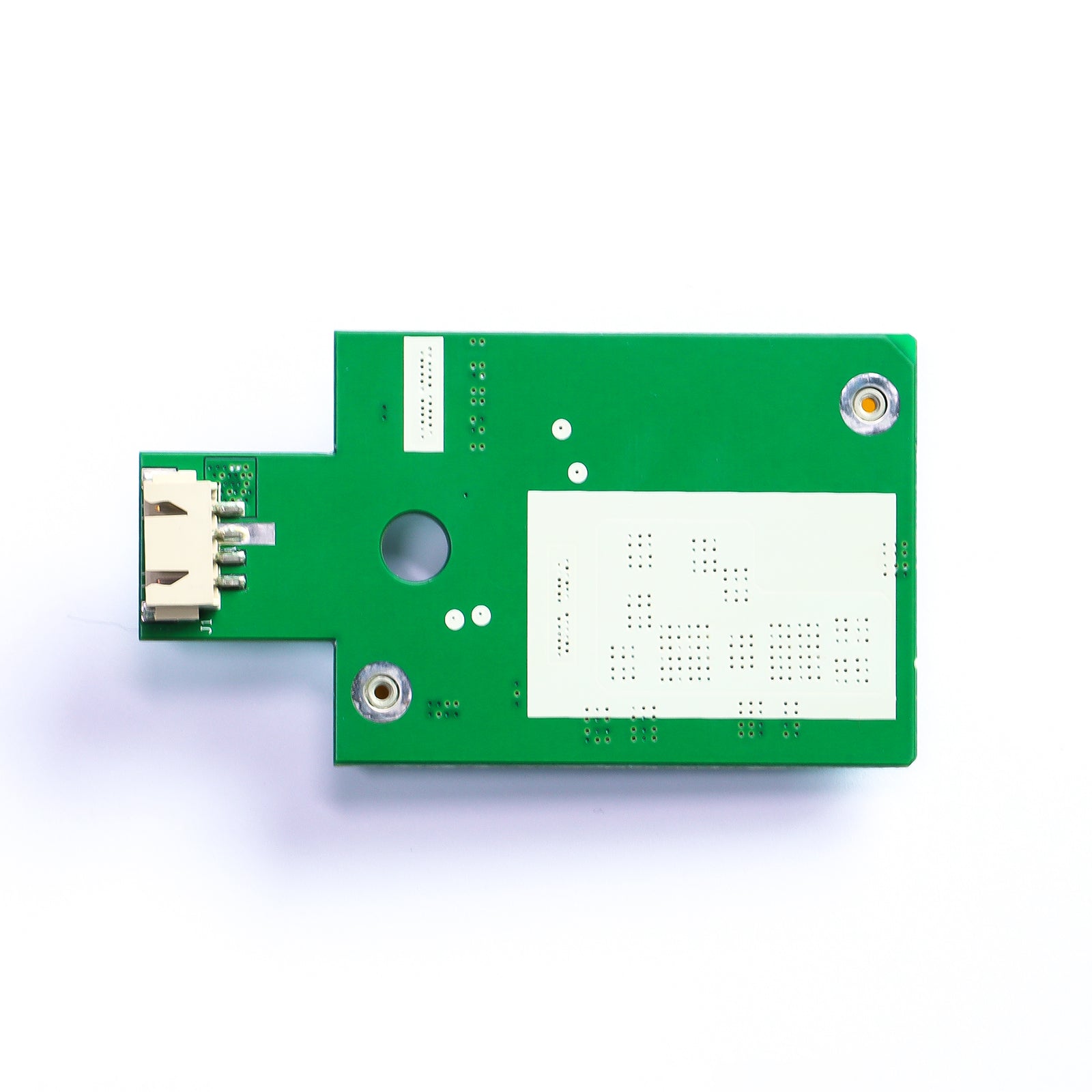

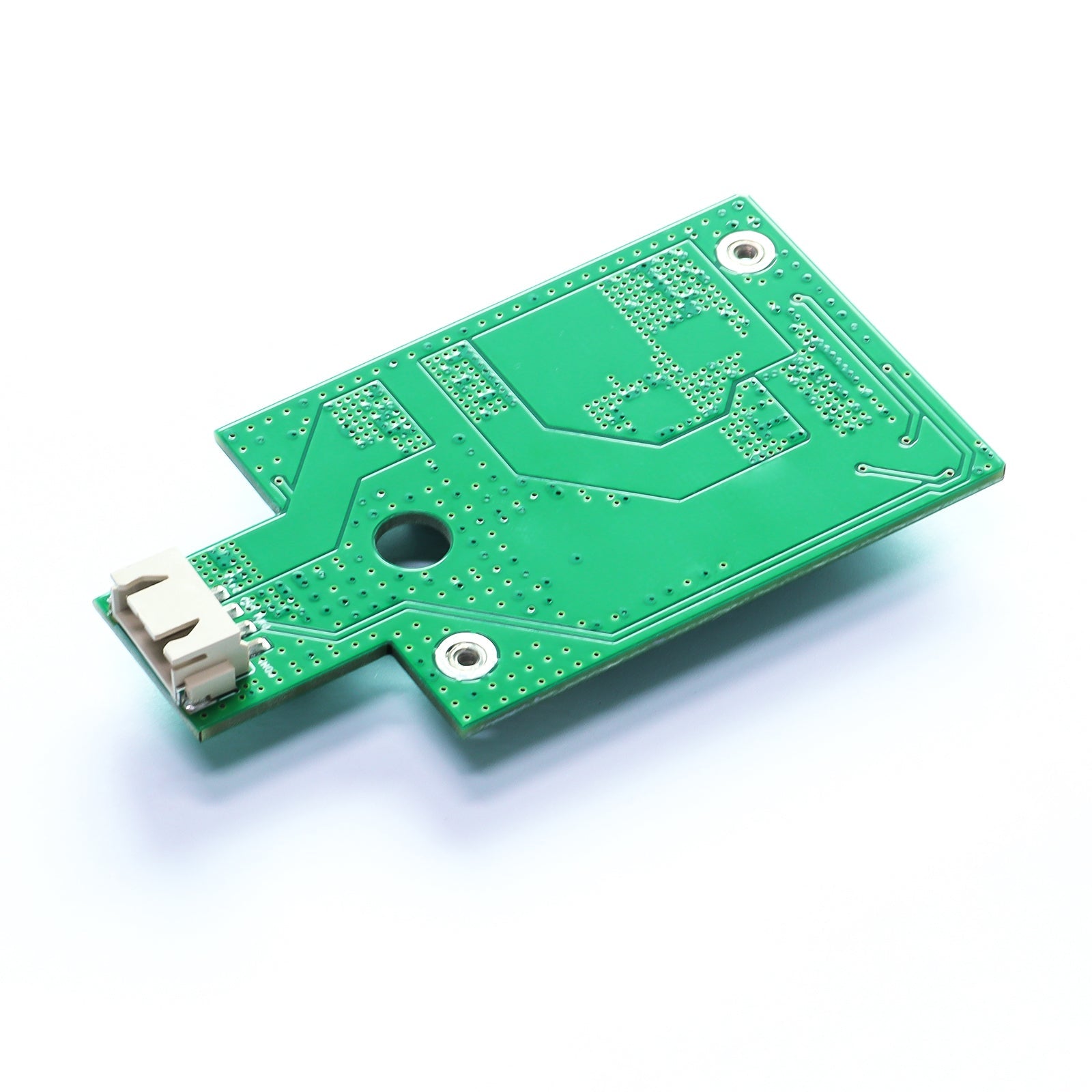

Atomstack Driver Board Replacement for X20 A20 S20 Pro M100 Laser Module

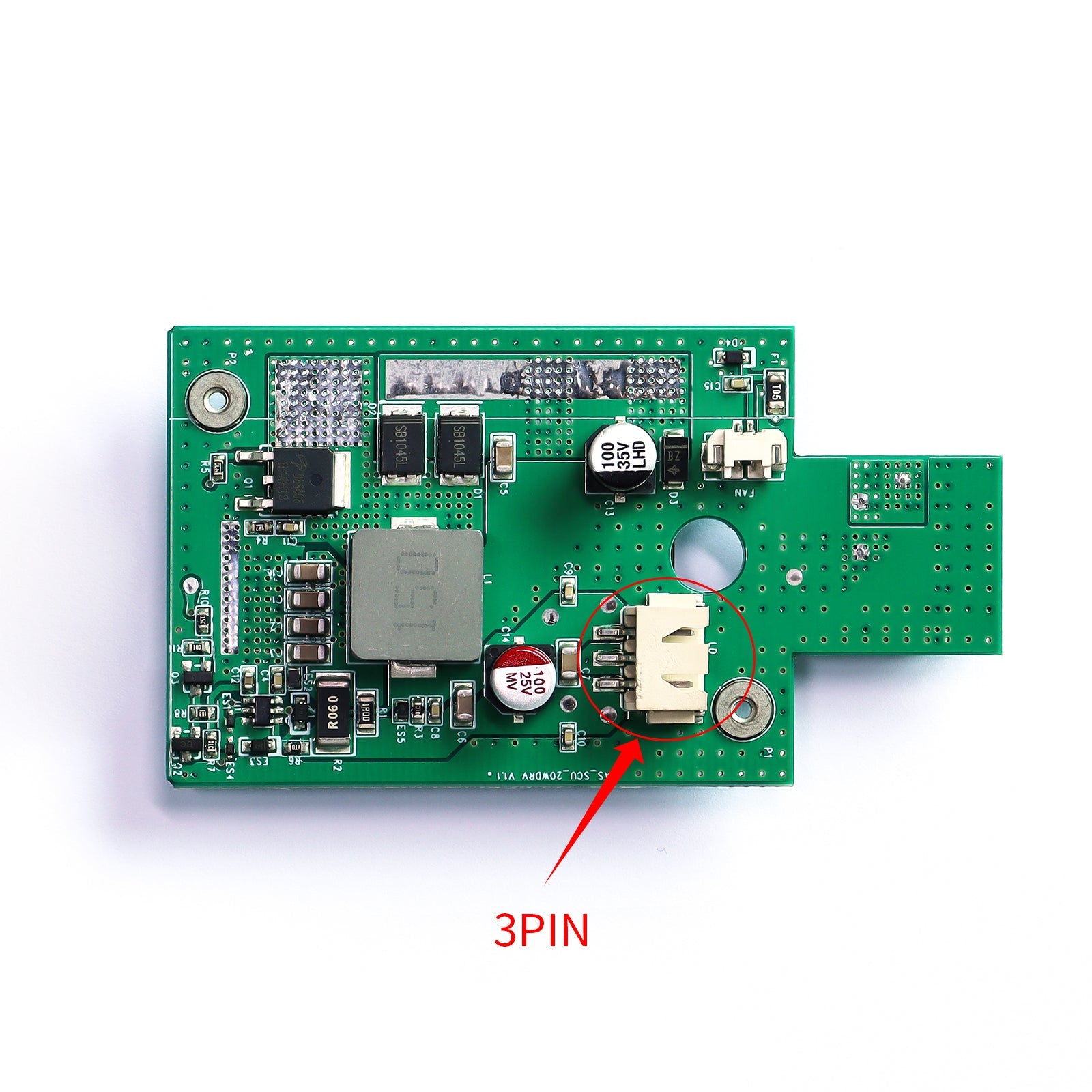

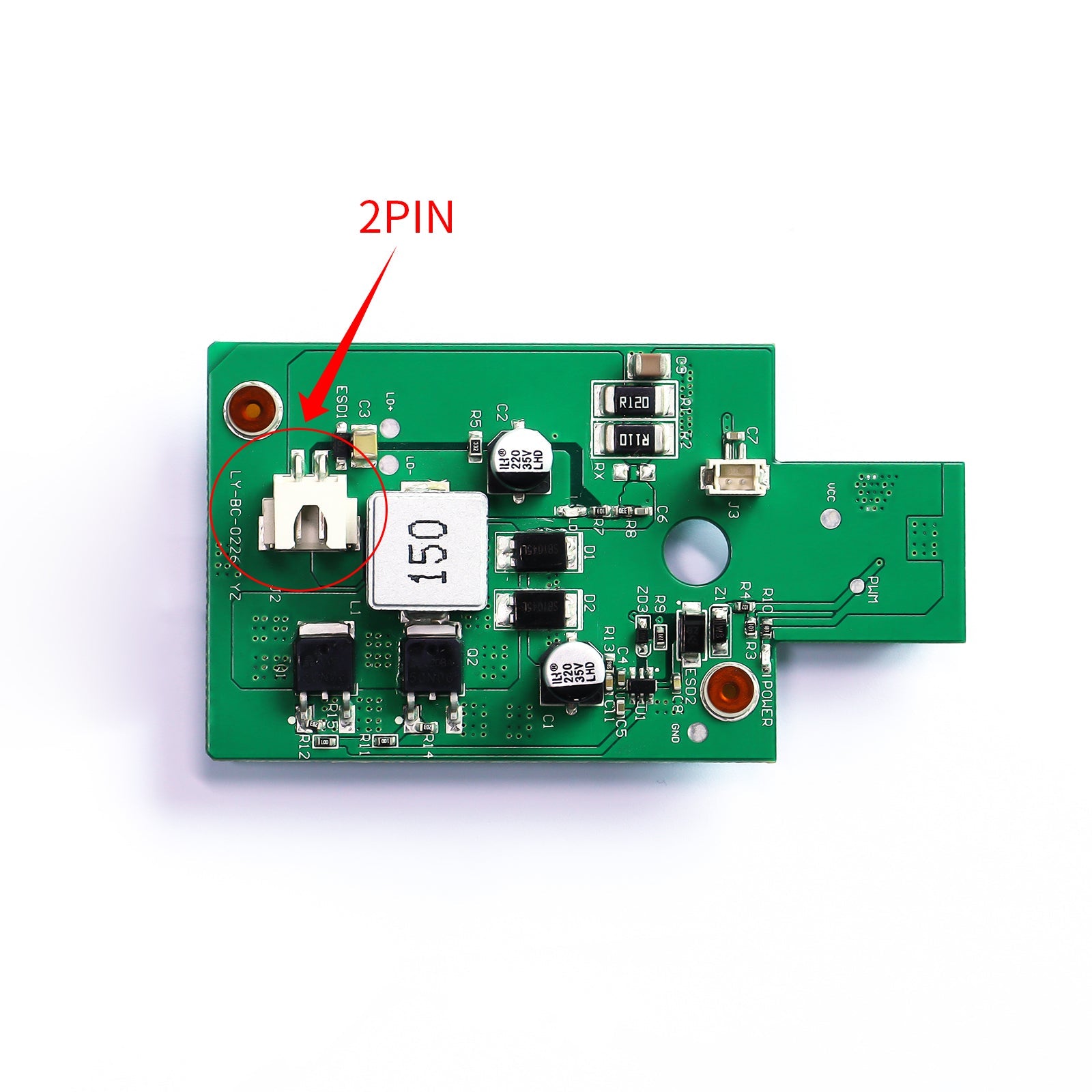

NOTE: Please check whether the interface of your machine is 3 PIN or 2 PIN

Used for ATOMSTACK 20W optical power drive board replacement for laser of model X20Pro/A20Pro/S20Pro as well as M100 laser module.

Method:

1. Use a screwdriver to remove the four M3 screws from the top of the laser

2. Loosen the diagonal two fixing screws on back of the laser and remove the current drive board (Please unplug the two power cables from the current drive board)

3. Connect the new drive board with the two power cables (Attention to the difference between 3PIN and 2PIN interface)

Package included:

1* Atomstack 20W Laser Driver Board
